WELL LOGGING

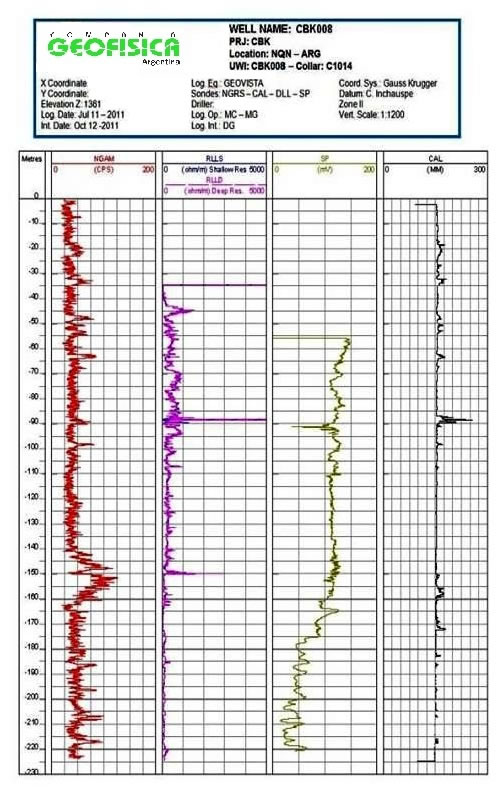

Well logging is an undersoil investigation technique, consisting of measuring and registering continuously and simultaneously different physical parameters, along a well depth (resistivity, spontaneous potential, natural gamma radiation, and logging caliber) using, with this purpose, different multiparameter exchangeable sounding line, moving in it, by an enrolled connection wire on the surface.

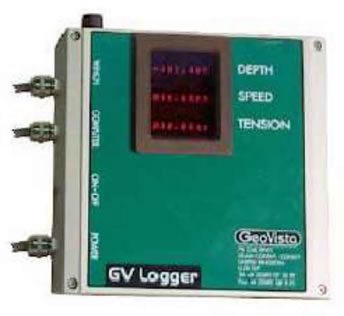

The electric signals generated by the sounding lines are transmitted through the wire up to the electronic unit of control, situated on the surface as well, which is in charge of processing and registering the obtained data, which, later, allows the interpretation and deduction of the different characteristics and properties of the successive layers and materials crossed by the sounding line throughout its rounds.
This work is done following different standardized protocol and the technical reports are made by professionals, delivering the results digitally and in paper, of all the information, both raw and analyzed. CHARACTERISTICS
The electric signals generated by the sounding lines are transmitted through the wire up to the electronic unit of control, situated on the surface as well, which is in charge of processing and registering the obtained data, which, later, allows the interpretation and deduction of the different characteristics and properties of the successive layers and materials crossed by the sounding line throughout its rounds.
This work is done following different standardized protocol and the technical reports are made by professionals, delivering the results digitally and in paper, of all the information, both raw and analyzed. CHARACTERISTICS
- Up-to-date technology, all digital

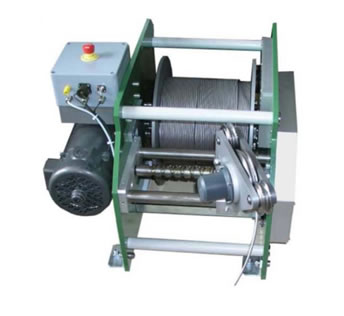

- 750 m depth capacity with a monoconductor wire
- Data quality control in with calibrated at well head and tested sounding lines
MAIN APPLICATIONS
- Mining investigation (uranium, lithium, salt flats deposits)
- Hidrogeological studies
- Geotechnical studies
- Soil contamination determination
- Water quality
- Salt intrusion
